100tph palm oil extraction production machine
Related parameter of 100tph palm oil extraction production machine:
100tph palm oil extraction production machine is the main equipment in palm oil production process.Palm oil production process is a complex process which includes palm fruit reception station, palm fruit sterilizing station,palm fruit threshing station,palm fruit digesting & pressing station and palm oil clarification station.And we can customized palm oil extraction production machine according to the customers' requirements.

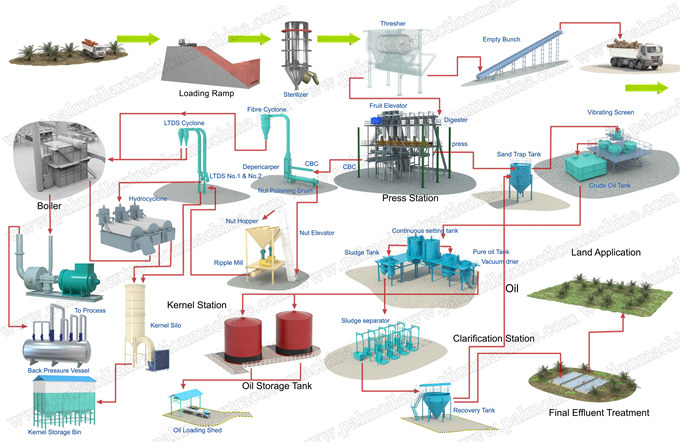

Process flow chart of palm oil extraction production process:
Palm oil extraction process flow chart

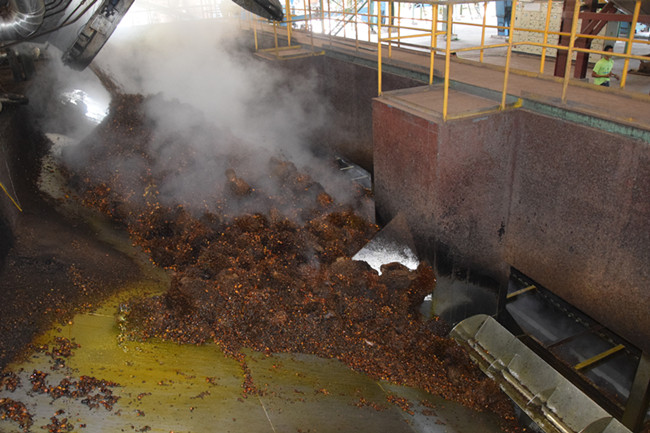

Palm fruit reception station
Palm fruit reception station is used for loading the Fresh fruit bunch (FFB) to the palm fruit cage.
Palm fruit sterilizing machine
Palm fruit sterilizing station
FFB transported by scraper conveyer fall into sterilizing tank, make FFB soft,get more oil yield. sterilizing time 90~120mins, temperature 130~145℃.Sterilizer can be design as owner’s requirement.horizontal sterilizer or vertical sterilizer for our customer.
Palm fruit threshing machine
Palm fruit threshing station
Palm fruit thresher in 100tph palm oil extraction production machine is used for separate empty fruit bunch and palm fruit.According the palm oil mill capacity we can design the thresher capacity, usually we have a spare one, in case one of them not work. Empty fruit bunch from palm fruit thresher will be conveyed to outside, can be used as fertilizer in palm fruit plantation. Sterilized palm fruit will be convey to next station.

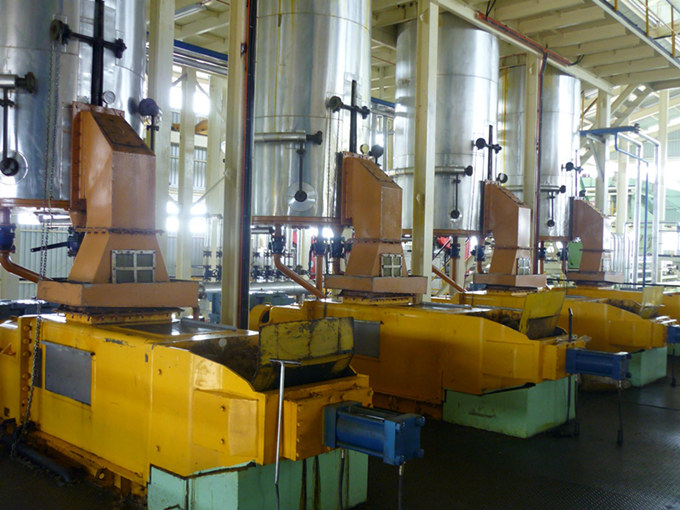

Palm fruit digesting & pressing machine
Palm fruit digesting & pressing station:
Pressing station in 100tph palm oil extraction production machine is include digestor and oil presser.
Sterilized palm fruit from thresher conveyed to digestor.There are blades in digestor, blades will be rolling by motor which is on the top of digestor. Palm fruit peel can be crushed by blades, besides we will fill the steam in digestor for heating. Palm fruit pulp cell can be destroyed under the high temperature condition, after that we can get higher oil yield.

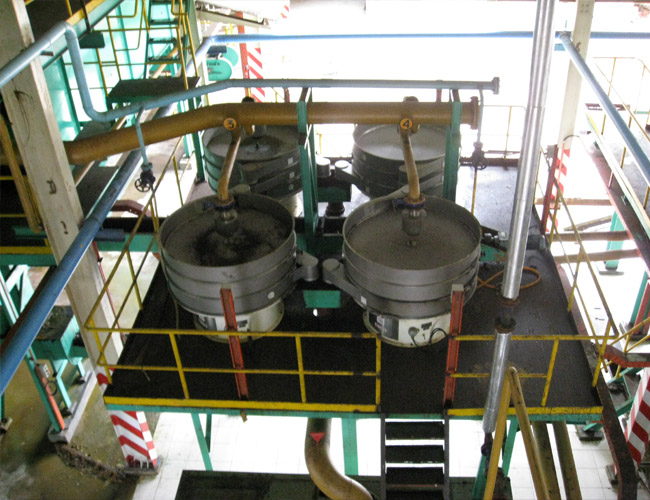

Palm oil clarification machine
Palm oil clarification station:
A mixture of oil, water, and solids from the bunch fibres is delivered from the palm oil digesting & pressing station to a clarification tank of 100tph palm oil extraction production machine . In the conventional process, separation of the oil from the rest of the liquor is achieved by settling tanks based on gravity. The mixture containing the crude oil is diluted with hot water to reduce its viscosity. A vibrating screen helps remove some of the solids. The oil mixture is heated to 85-90°C and allowed to separate in the clarification tank. A settling time of 1-3 h is acceptable. Oil from the top is skimmed off and purified in the centrifuge prior to drying in vacuum dryer. The final crude palm oil is then cooled and stored. The lower layer from the clarification tank is sent to the centrifugal separator where the remaining oil is recovered. The oil is dried in vacuum dryers, cooled and sent to storage tanks.

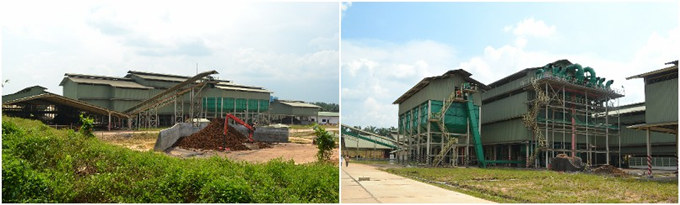

Palm oil mill plant
Henan Doing Company is specialized in researching and developing in palm oil plant, palm oil refinery plant, layout design and equipment design, we can also provide strong technical support. With our development in palm oil processing field, our company can offer advanced technology and our market expand to Malaysia and Indonesia and Africa, Our company can offer turn-key project, old palm oil mill update or reconstruction, we can offer abroad engineering service.Besides 100tph palm oil extraction production machine ,we also can supply small capacity palm oil extraction production machine.
| Product name : | 100tph palm oil extraction production machine |
| Main station: | palm fruit reception station, palm fruit sterilizing station,palm fruit threshing station,palm fruit digesting & pressing station and palm oil clarification station |
| Production capacity: |
Small production line:1-2-3-5tph Medium sized production line:10-15-20-30tph Large sized production line:50-60-80-100-120tph |
